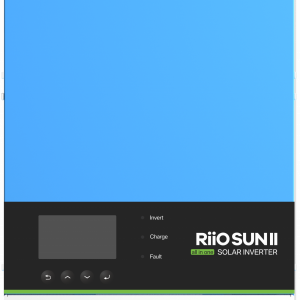

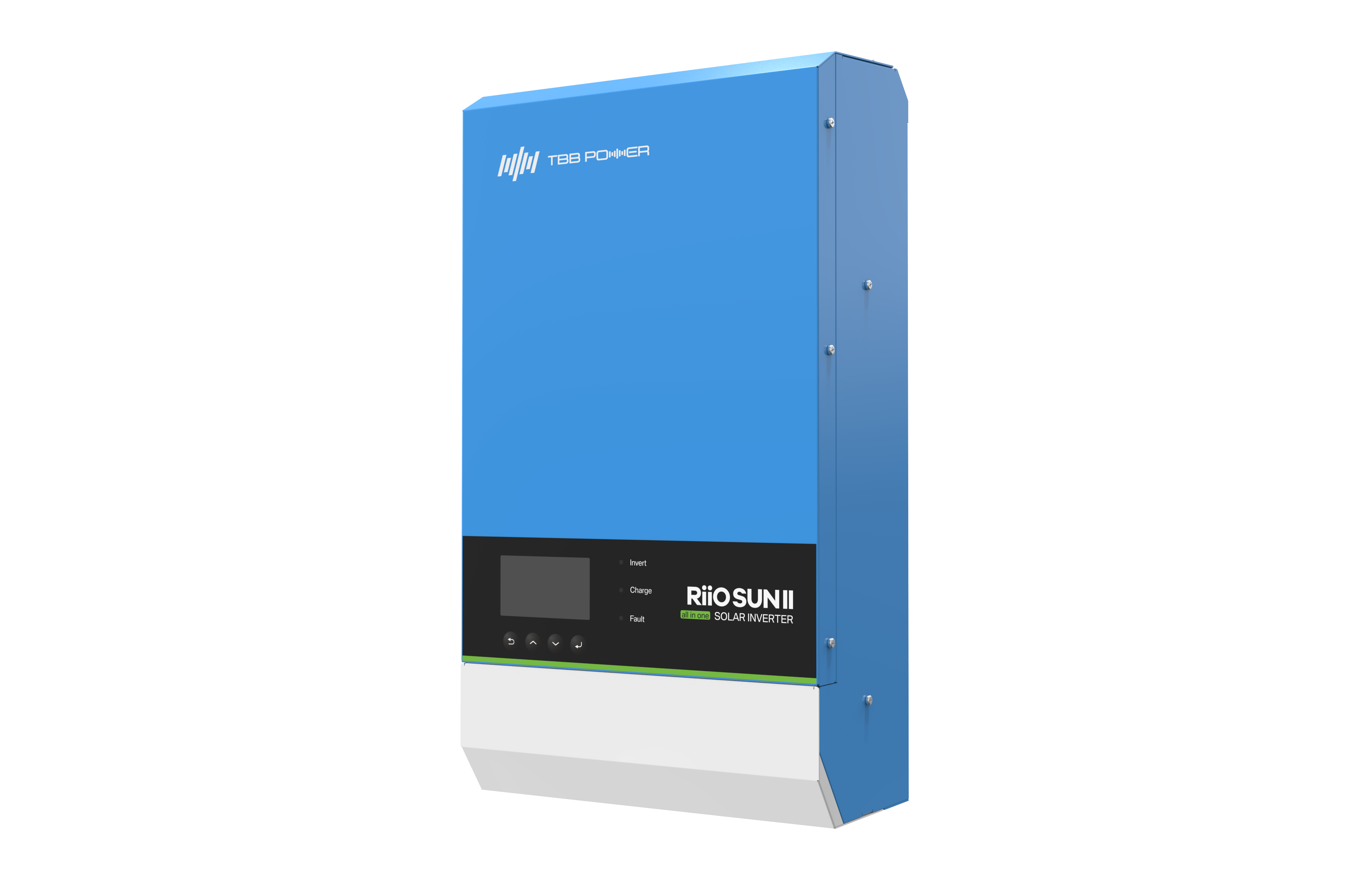

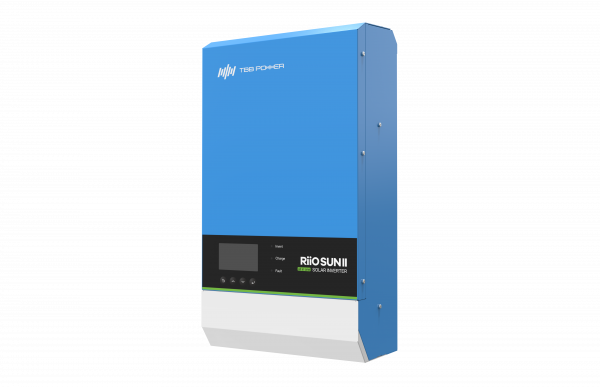

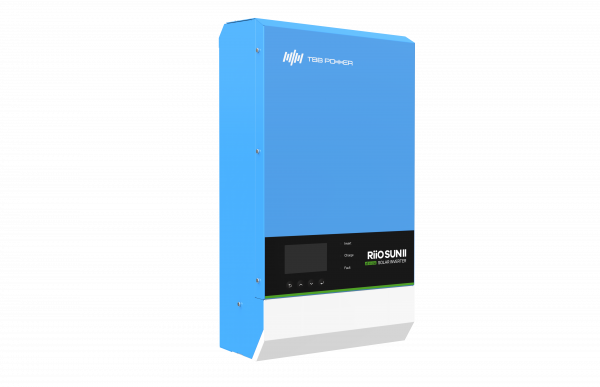

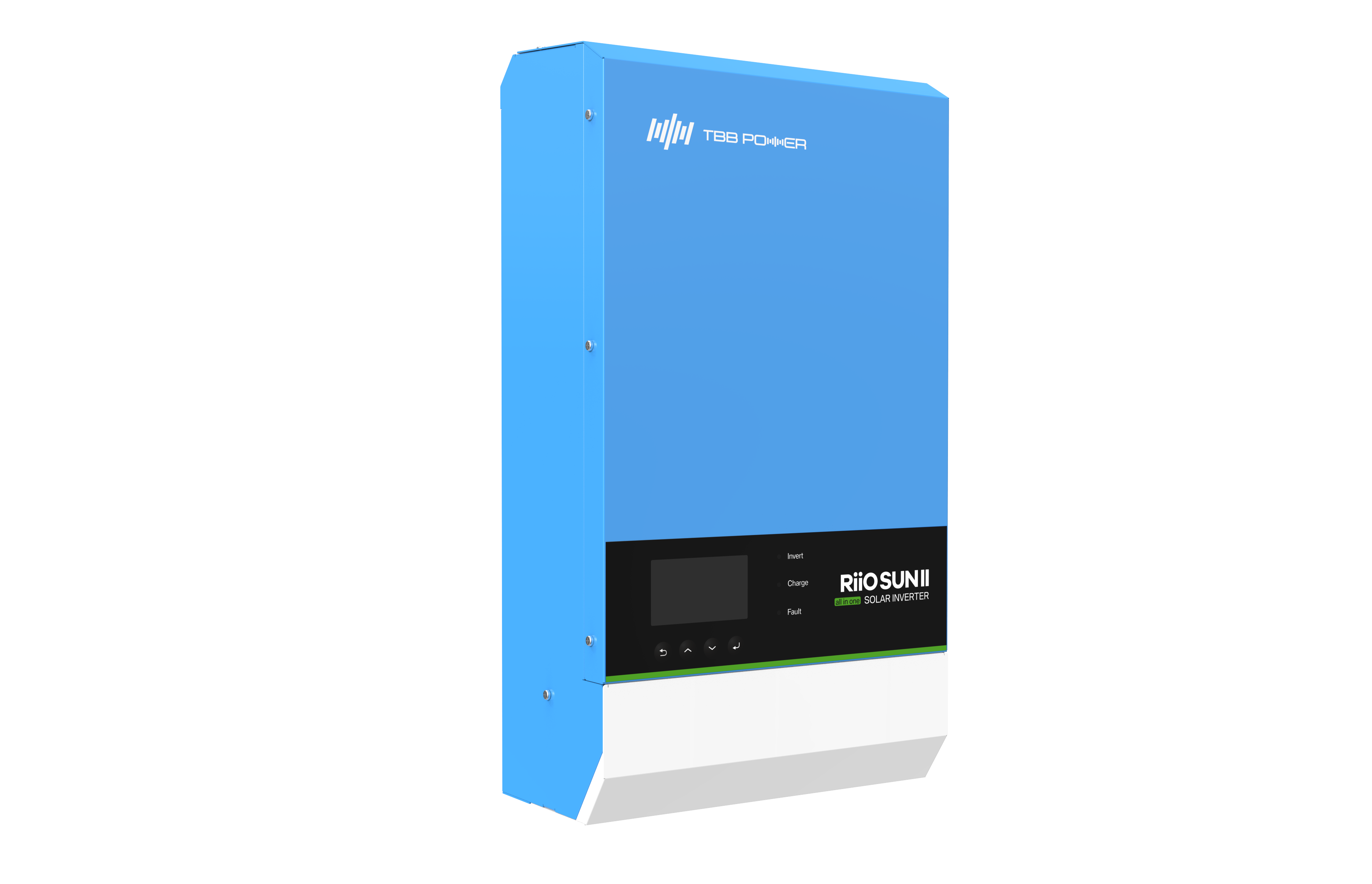

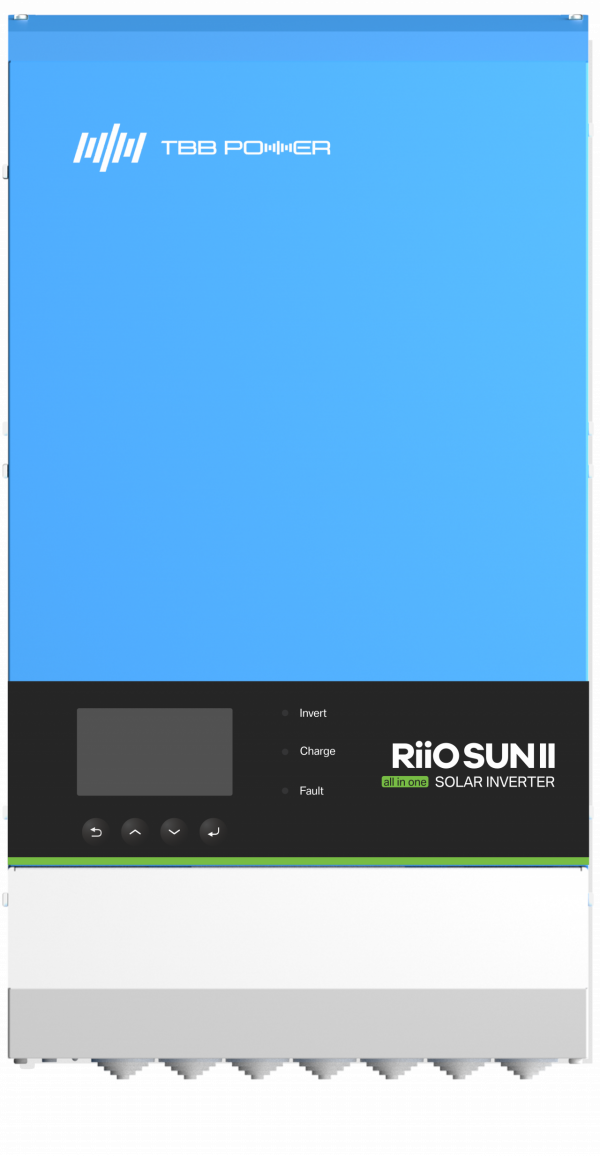

RIIO SUN II 5KVA-S
Advanced all-in-one solar inverter with parallel and three-phase capability

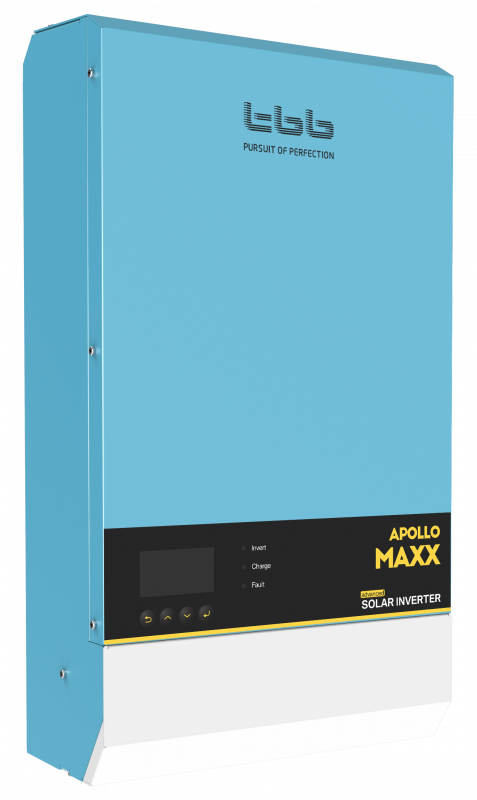

Apollo Maxx is a powerful all-in-one solar inverter that integrates with multiple functions, including a high-performance true sine wave inverter, a powerful battery charger, a 2 MPPT charge controller, a high-speed automatic transfer switch, and two outputs for load management.
RIIO SUN II all-in-one solar inverter can be used in multiple applications. With a simple setting, you can compose a DC coupling system, power backup system, or solar hybrid system. Its distinguishing surge capability makes it capable of powering the most demanding appliances, such as fridges, freezers, water pumps and air-conditioners, washing Machines, etc.
With the function of power assist & power control, it can be used to work with a limited AC source such as a generator or limited grid. Riio Sun II can automatically adjust its charging current to protect the grid or the generator from overload. It can also work as a supplement source to the generator or grid once the temporary peak power appears.
Panel Ready
Battery Ready
Plug and Play
Auto Charge from Grid (when battery low)
Wireless Monitoring
DC and AC Breaker Embedded
System Operation
- Compatible with panels, batteries, grid, and Generators.
- Able to communicate with battery BMS (Battery Management System).
- Automatic switches.
- Peak Power Watts 3s (10000)
- UPS (Uninterrupted Power Supply) changeovers.
- Inbuilt MPPT charge controller.
- Advanced DSP control technology.
Functionality
This is a multi-mode inverter that is designed with 2 AC outputs allowing clients to separate essential loads from no essential, this means clients can separate the basics (Lights, Entertainment, etc. ) on AC Output 1, and on AC Output 2 they can apply big loads such as (pumps, Motors, Microwave, washing machine, etc) which can be filtered on the display to come on at a certain Panels power and time period.
System Display
- LCD setting display.
- Panel input/battery input/grid input/load %/Battery %
- Battery options, LI / GEL / OPzV / AGM / FLOODED / TRACTION
- Parallel Connection to expand Inverter Size (Single Phase 3 x 5Kva (15Kva)) / (Three Phase 3 x 5Kva (10Kva))
System Monitoring
- WIFI Monitoring (plug and play anytime anywhere).
- Easy to use.
- Remote Firmware updating for the inverter.
- Free online monitoring via web or mobile app
About
- Easy installation
- Rated Power: 5KVA
- Max PV Array: 8400W (4400 / MPPT TRACKER)
- Storage Temperature: -20 to 65 Degrees Celsius
- Recommended Battery Types: CAPRI, Pylontech, Dyness, TBB
