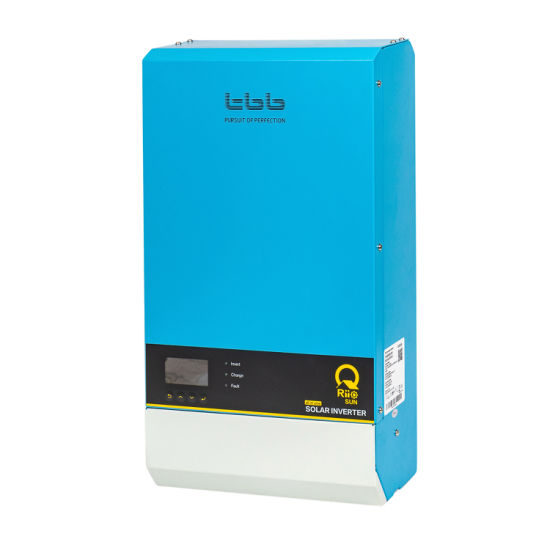

RiiO Sun 3KVA
All in One Solar Inverter; Transformer Based
RiiO Sun is a powerful all in one solar inverter integrated with multiple functions, including a high-performance true sine wave inverter, a powerful battery charger, a MPPT charge controller, and a high-speed automatic transfer switch.
RiiO Sun all in one solar inverter can be used in multiple applications. With a simple setting, you can compose a DC coupling system, solar hybrid system or power backup system. Its distinguishing surge capability makes it capable to power most of demanding appliances, such as fridge, freezer, water pump and air-conditioner, etc.
Under the generator mode, with the function of power assist & power control, RiiO Sun can automatically adjust its charging current to protect the grid or the generator from overload. It can also work as the supplement source to the generator or grid once the temporary peak power appears.


Panel Ready

Battery Ready

Plug and Play

Auto Charge from Grid (when battery low)

Wireless Monitoring

DC and AC Breaker Embedded

System Operation
- Compatible with panels, batteries, grid, and Generators.
- Able to communicate with battery BMS (Battery Management System).
- Automatic switches.
- Peak Power Watts 3s (6000)
- UPS (Uninterrupted Power Supply) change overs.
- Inbuilt MPPT charge controller.
- Advanced DSP control technology.
Functionality
This is a multi-mode inverter that designed to suit Zimbabwean house holds with an inbuilt transformer allowing users to power heavy equipment such as pumps and motors.
System Display
- LCD setting display.
- Panel input / battery input / grid input/ load % / Battery %
- Battery options, LI
- Parallel Connection to expand Inverter Size (Single Phase 3 x 5Kva (15Kva)) / (Three Phase 3 x 5Kva (10Kva))
System Monitoring
- WIFI Monitoring (plug and play anytime anywhere).
- Easy to use.
- Remote Firmware updating for the inverter.
- Free online monitoring via web or mobile app (OPTIONAL)
About
- Easy installation
- Rated Power: 3KVA
- Max PV Array: 4000W
- Storage Temperature: -20 to 65 Degrees Celsius
- Recommended Battery Types: CAPRI, Pylontech, Shoto,
